Electric three-wheel forklift truck 1.6 - 2.0t

3000 - 6500 mm
1600 - 2000 kg

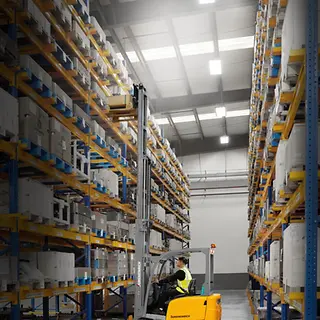

High residual capacity at lift heights of up to 6.5 m.
Compact design for easy manoeuvring in confined spaces.
Wide range of options for application-specific truck configuration and two performance packages efficiencyPLUS and drive&liftPLUS.

EFG MB 216k / 220

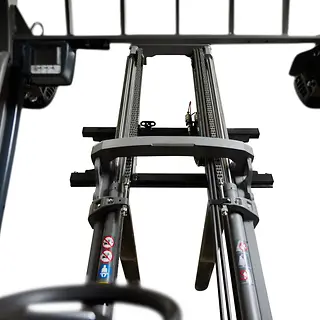

Electric forklift trucks in the EFG MB series are robust, versatile and ideally suited to a wide range of transport and stacking tasks. Thanks to their compact three-wheel design, they offer outstanding manoeuvrability and are the perfect choice for efficient handling in confined warehouse environments. A powerful dual-motor front-wheel drive combined with intelligent Jungheinrich control technology ensures strong, consistent performance with low energy consumption. Advanced assistance and safety features support safe daily operation. Reduced maintenance requirements and durable, high-quality components also help keep operating costs low. Excellent mast visibility, a low dashboard and the curved overhead guard provide the operator with an expanded field of vision. Combined with modern 3-phase AC technology, ergonomic design and numerous equipment options, the EFG MB series delivers reliable, cost-effective performance for indoor and outdoor use.

Features

Powerful drive system

Excellent acceleration, optimum travel and lift speeds and high throughput, thanks to Jungheinrich controllers and high-performance AC dual-drive and hydraulic motors.
High torque for rapid work cycles.
Up to 30% greater energy efficiency compared to DC motors.

Smooth and precise load control

Optional electro-hydraulic system enables fast, precise and exceptionally smooth hydraulic operation.
Robust mast profile and low centre-of-gravity truck design support demanding stacking tasks.

Efficient battery technology

Energy recovery through regenerative braking.
Lithium-ion batteries are maintenance-free, easy to charge and highly efficient.
A convenient charging socket enables easy charging and intermediate charging as standard for lithium-ion batteries.
Lithium-ion technology ensures high availability thanks to extremely short charging times, with no battery exchange required.
No charging rooms or ventilation are required for lithium-ion batteries, as there is no build-up of gas.

Controlled cornering and truck response

curveCONTROL automatically reduces travel speed to up to 3 km/h when cornering.
Low centre of gravity and stable mast profile support stable travel behaviour.
Deactivation of the drive and hydraulic functions when the seat is unoccupied.
Electronic and hydraulic overload protection guard.

Integrated truck protection

IPX5 protection for the whole truck.
Emergency disconnect switch within easy reach.
Reliable data transfer between electronic components via CAN bus technology.
Oil-immersed, maintenance-free wet disc brake for low service costs and long-term braking reliability.

Additional protective equipment

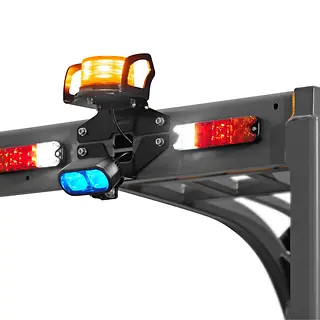

Strobe light on the overhead guard.
Red or blue Floor-Spot and Floor-Stripes to warn pedestrians in the surrounding area.
accessCONTROL allows driving and hydraulic functions only when the safety belt is locked.
driveCONTROL automatically reduces travel speed from a defined lift height.
EasyAccess for authorised users via pin code, transponder card or softkey.

Controls tailored to the task

soloPILOT, multiPILOT and duoPILOT for application-specific control.
Telematics box as standard for options such as fleet management systems.

Comfort throughout the shift

Precise hydraulic power steering with minimal effort and no kickback.
Comfortable, fatigue-free operation of direction and hydraulics with soloPILOT.

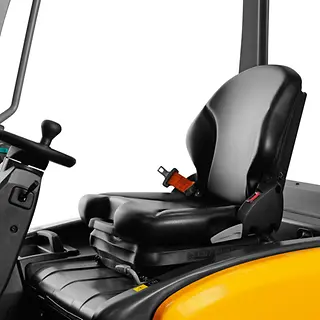

Adjustable steering column and comfort seat for an optimum seating position.
Adjustable armrest available as an option.
Practical storage for documents and personal items.

Options for different environments

drive&liftPLUS performance package.
USB charging interface and voltage converter.
Cabin options including heater for greater comfort in all weather conditions.
Cold store version down to -28 °C and tropical version up to 50 °C.
LED working lights for good visibility in dark areas with reduced maintenance costs.

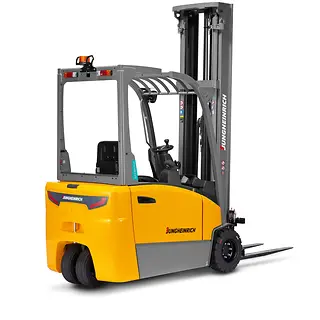

EFG-MB_Studio_--_EFG MB220-standard-MAM-70187.webp

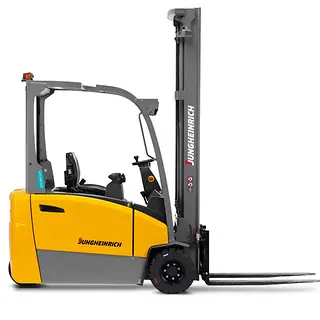

EFG-MB_Studio_--_EFG MB220-right-side-MAM-70185.webp

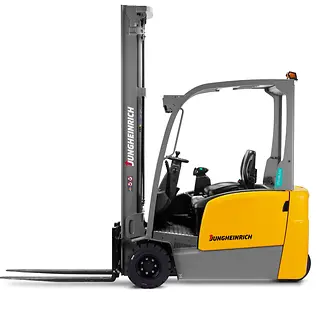

EFG-MB_Studio_--_EFG MB220-left-side-70199.webp

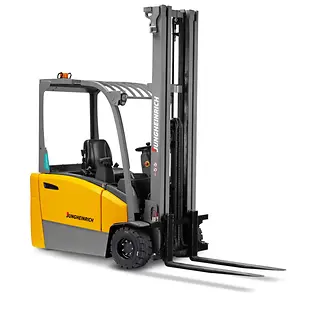

EFG-MB_Studio_--_EFG MB220-front-right-MAM-70186.webp

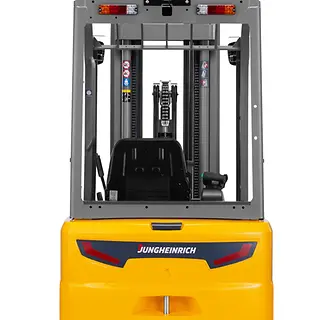

EFG-MB_Studio_--_EFG MB220-back-MAM-70194.webp

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFG MB 216k	1,600 kg	6,500 mm	17 km/h	2,912 mm	48 V
EFG MB 220	2,000 kg	6,500 mm	17 km/h	3,020 mm	48 V

Downloads

Product advantages EFG MB pdf (1.4 MB)

Technical data EFG MB pdf (650.5 KB)
